FUSION & FLIPPING FUSION PROFESSIONAL PROMPTERS

The Fusion / Fusion Hi-Bright range is designed for professionals who do not need the extended broadcast functions of the Quasar / Premium ranges and find Tablet / Micro Prompters too limiting (as they require larger screens for longer “Reading Distances” - see Reading Matrix below). Fusion is a mid-budget system using IT style monitors - Standard Fusion’s have plastic frames / Fusions Hi-Bright have metal frames, both types can mirror in the monitor. Both ranges ship with our PC based prompting software WinDigi Lite which can be upgraded to Lite Plus or Full. Available in 15”, 17”, 19” and 24” (16 x 9 Flipping Fusion only) they use “off the shelf” rigging (19mm bars / clamps) which is very suitable for rigging on PTZ cameras.
Applications:-
• Traditional ENG / Studio “on-camera“ and PTZ through lens rigging with Talent Monitor option
• 24” Flipping Fusion is excellent for large screen “PowerPoint Prompting” (16 X 9 aspect ratio)
• Interrotron (Active and Passive)
• Conference Poles (CG and MCG) monitors
Key Features
• 400 to 1200 NIT brightness colour monitors suitable for Location, Studio & Conference systems usage - Fusion have plastic frames and Fusion hi-Bright aluminium frames
• Highly flexible quick and easy rigging / clamps system (using 19mm bars) allowing multiple types / styles of camera to be rigged including PTZ cameras
• Lightweight universal folding hood is ideal for robotic PTZ camera rigs - can be rigged “top down / bottom up”. Large “French Hood” available at no extra cost
• Automatic PAL/NTSC composite video signal detection
• VGA / HDMI input for high resolution computer graphics
• SDI as standard on the Fusion HiBright models
• Both models now mirror in the monitor
• WinDigi Lite software included in bundle with options to upgrade to Lite Plus and Full
• Variety of optional wired and wireless hand and foot controllers are available
• Under slung Talent Monitor, Time Code clock & separate Tally lamp options available
• Monitors do not use fans making them silent in use.
• Slim line for improved on-camera tilting
• LED Backlights for lower power consumption
Fusion Details and Model Numbers
· 900-015 - 15” Fusion
· 900-017 - 17” Fusion
· 900-019 - 19” Fusion
· 900-515 - 15” Fusion Hi-Bright
· 900-517 - 17” Fusion Hi-Bright
· 900-519 - 19” Fusion Hi-Bright
· 900-524 - 24” Fusion Hi-Bright
Each kit ships with:-
o 1 x Monitor & 15”/19”/ 24” lightweight reflector / folding hood
o 5 x rigging mount clamps
o 2 sets each of 200mm, 300mm and 450mm 19mm bars
o 1 x Camera, Monitor and Tripod plates
o 2 x Hood Bars, Rods and one safety collar
o 1 x WinDigi Lite Software dongle / CD
o 10 metre HDMI cable or 25m BNC

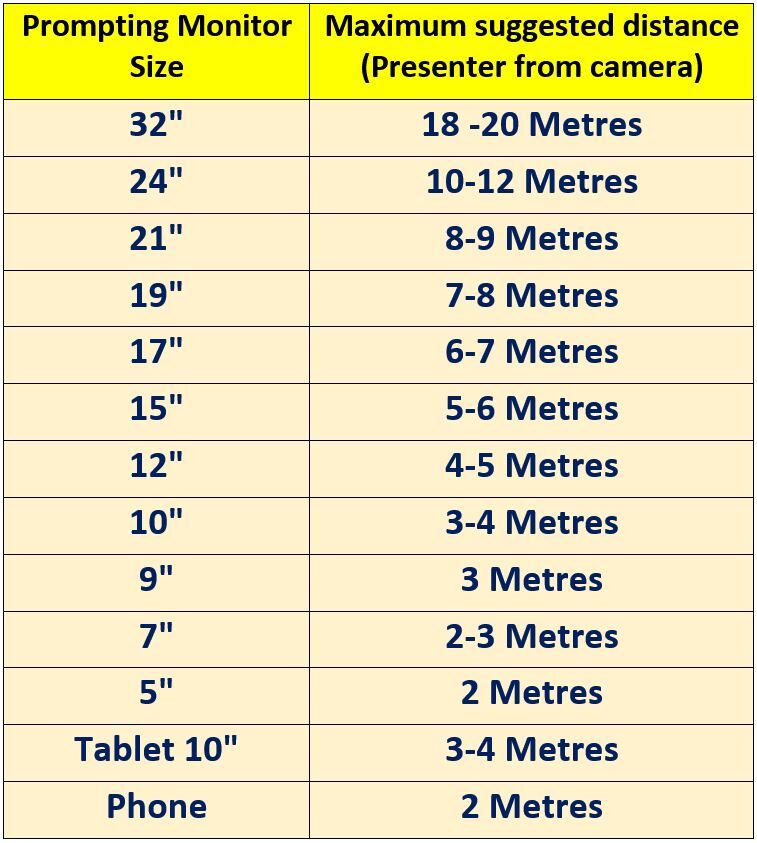

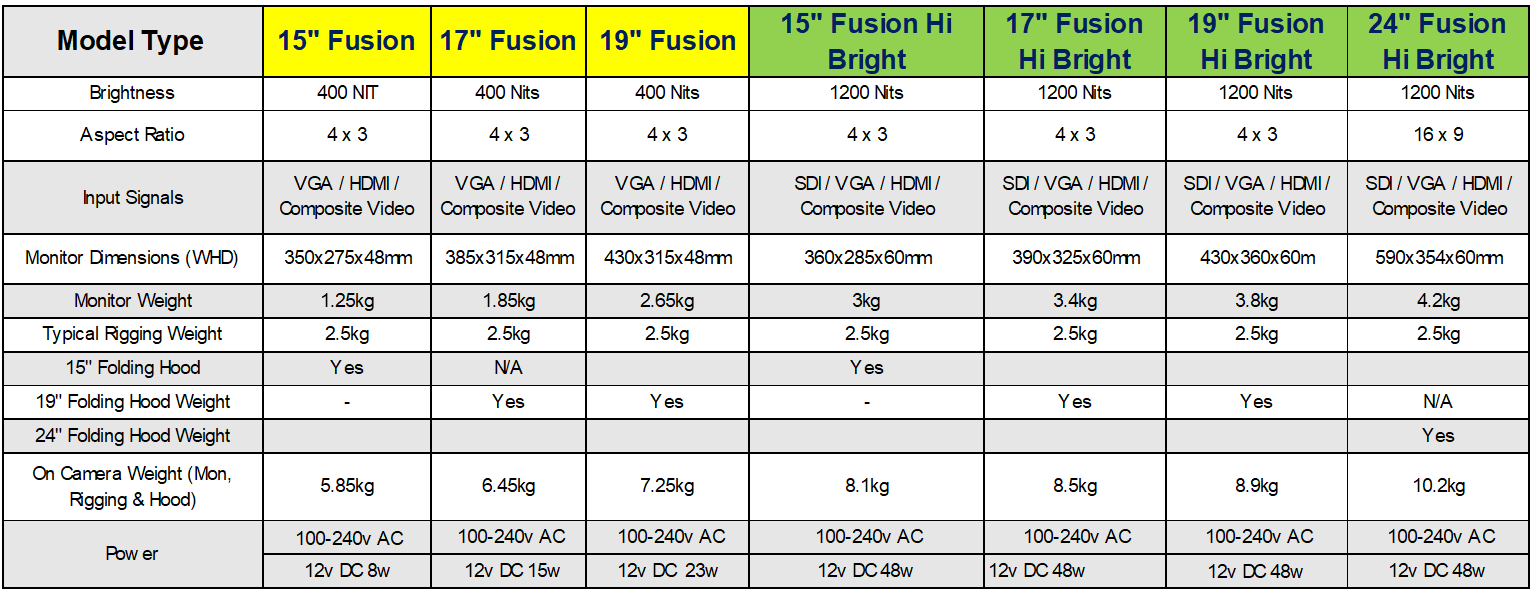

Specifications and Reading Matrix

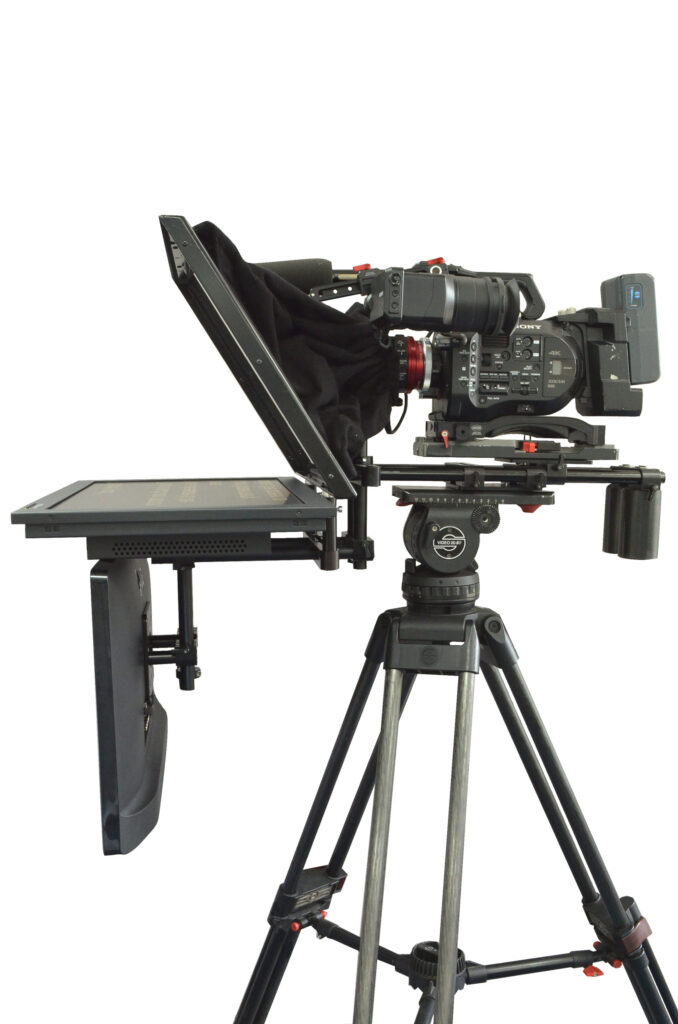

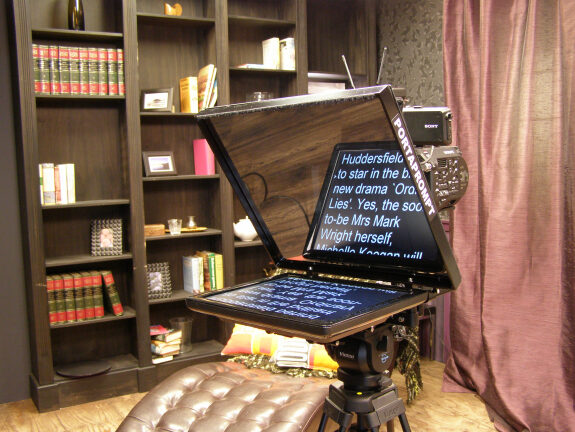

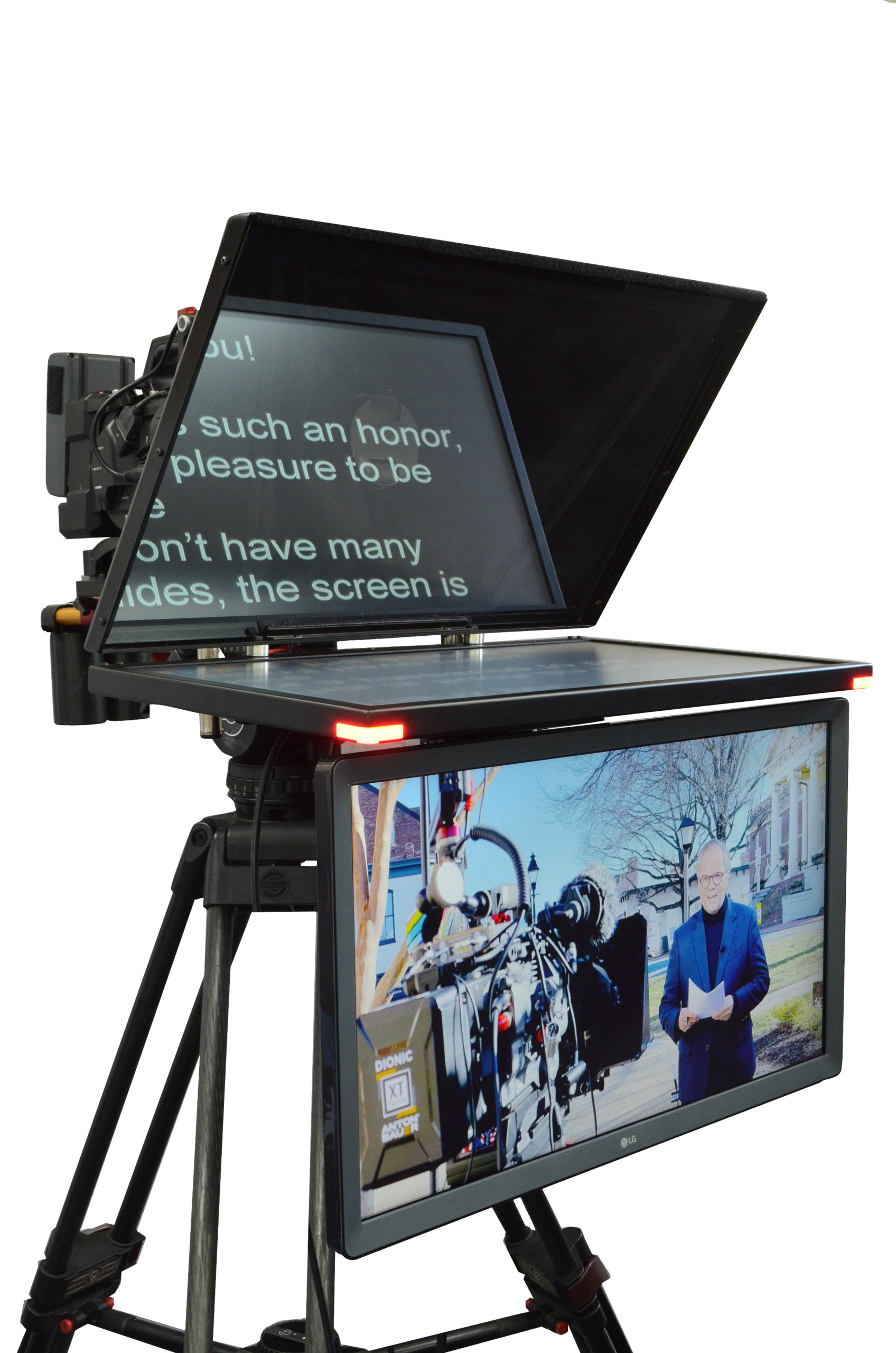

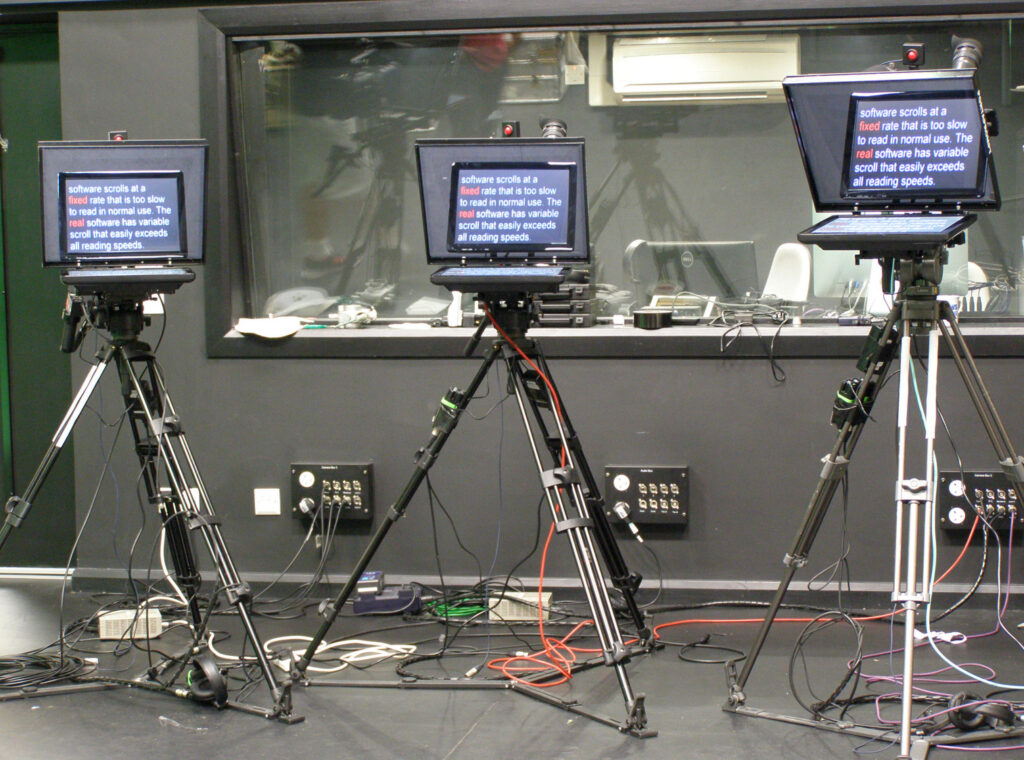

Rigging Examples
