QUASAR BROADCAST PROMPTERS

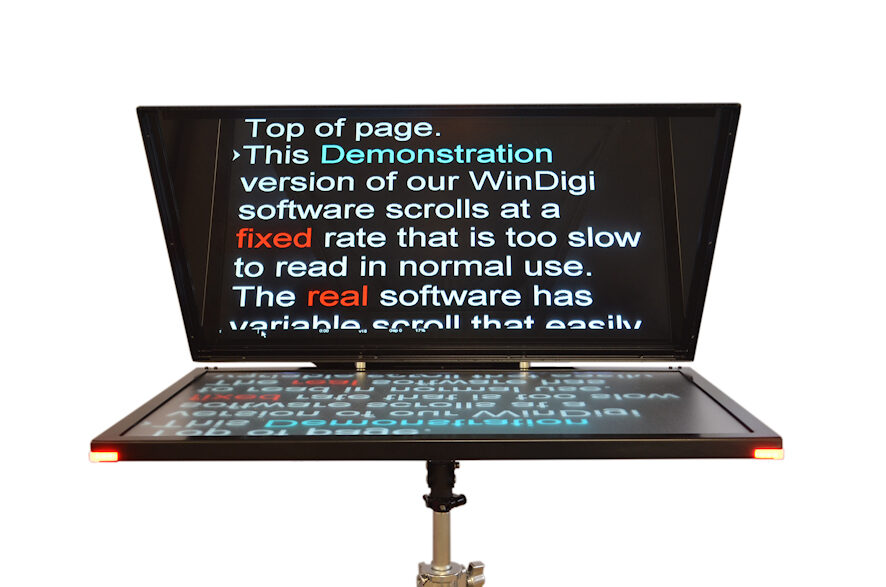

Portaprompt offers  Broadcast ultra slim, TFT, flat panel prompting “Head-up” Prompting Monitors - the ultra-high brightness Quasar Range

High performance, compact, lightweight, robust, colour, mirroring displays which have been designed for the rigours of our hire department so you can rely on these displays giving years of service. They use our ENG / EFP quick release clamp system to allow rapid rigging on and off camera making it easy to change the camera shot and can also use our Fusion rigging for PTZ camera rigging. Composite video, DVI, SDI and VGA inputs are as standard with options for IP connections for remote production workflows.

 Key Features

• Suitable for Location, Studio and Virtual Studio use
• Quick and easy to rig
• Lightweight, makes them ideal for Robotic & PTZ camera rigging option with Fusion PTZ Rig & optional large “French Hood”
• Slimline for improved on-camera tilting
• Automatic VGA, PAL/NTSC composite video, DVI and SDI signal detection with auto-terminating BNC loop-through
• NDI® IP input option, allows monitors to be operated remotely with a wired Ethernet connection

• Auto Backlight saving feature
• LED Backlights for lower power consumption
• Does not use fans making them silent in use
• Under-slung Talent Monitor, Studio Clock and Tally Number options
• Built in Tally Lights using closing contact, photocell or 12v dc operation
• Compact all metal hoods / reflectors (15”, 19”, 24” and 32”) are great for studios and really come into their own where the production is moving from location to location and the need for robust, compact, lightweight, easily transportable kit is paramount. The hood / reflector simply drops into 2 holes in the top of the displays. A cloth gaiter is then drawn around the camera lens to block out any light that may come from behind the lens into the hood
• 3 years Warranty

Quasar - Ultra High Bright (up to 1500 NITS) available 15", 17", 19”, 21”, 24"& 32”

Fitted with very high brightness LED backlights makes them suitable for outside use in bright sunlight. Can be turned down for indoor use via the brightness control to suit presenter. Tally lights are normally controlled via a photo cell attached to the camera tally light. Closing contact or NDI® options also available.

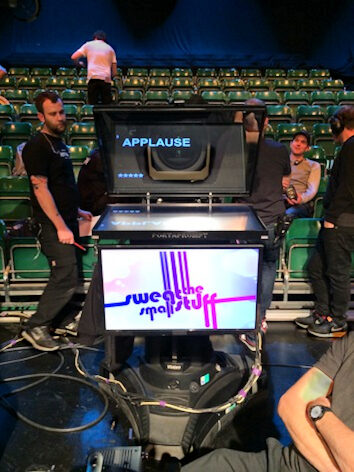

16 x 9 Talent Monitor/TV

We can supply pretty much any size on our rigging rig 24" and 32" are the most common. We offer TV models (with SDI input options) 900-122 – 22” but can supply other sizes as required

The Prompt Clock

This can be mounted to assist Presenters to keep track of the show time. The unit features dual colour digits (green/red), an LTC input and displays time of day. It can be integrated with an independent Tally Lamp which displays camera number and will simultaneously change colour with the Clock (green/red). This can be configured to connect to the station clock via optional NDI®.

Reading Matrix

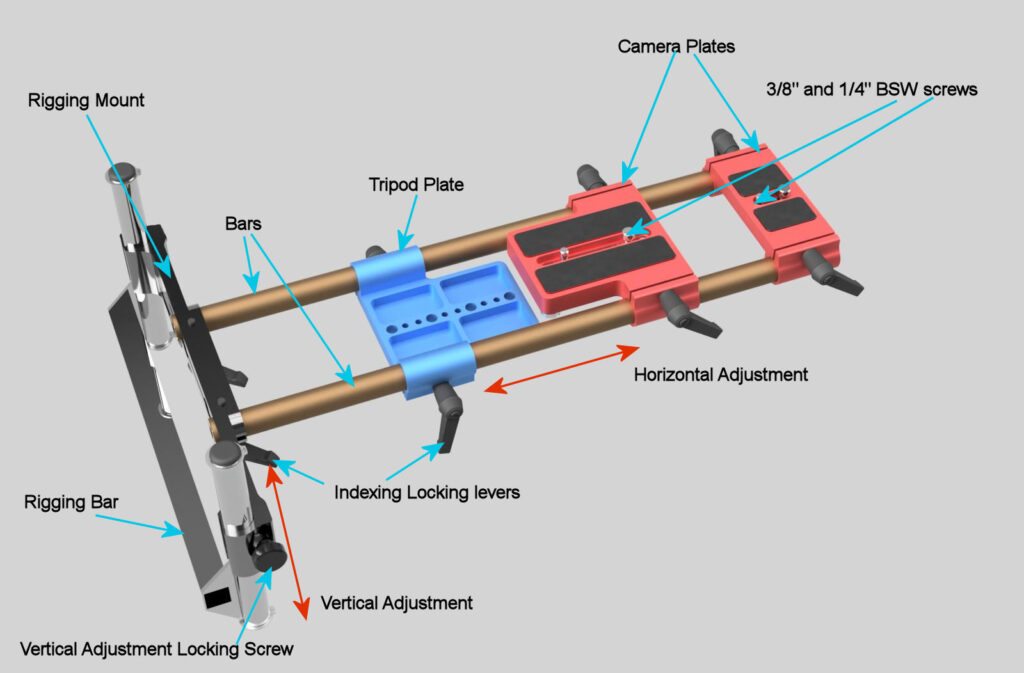

Rigging Plate and U Mount
